The smart memory metal nitinol is named after its metal composition (Nickel and Titanium), and where it was discovered: The Naval Ordnance Laboratory in the USA. When the material is deformed in a cool state, it returns to its original shape after heating. Alleima has over 20 years' of experience in processing nitinol, the game-changing alloy revolutionizing medical devices.

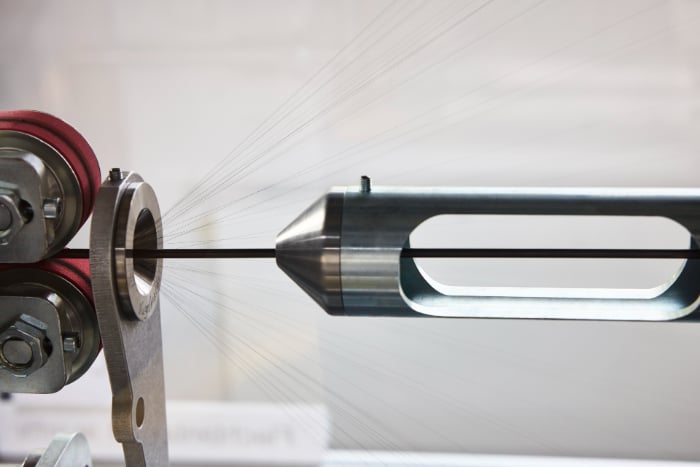

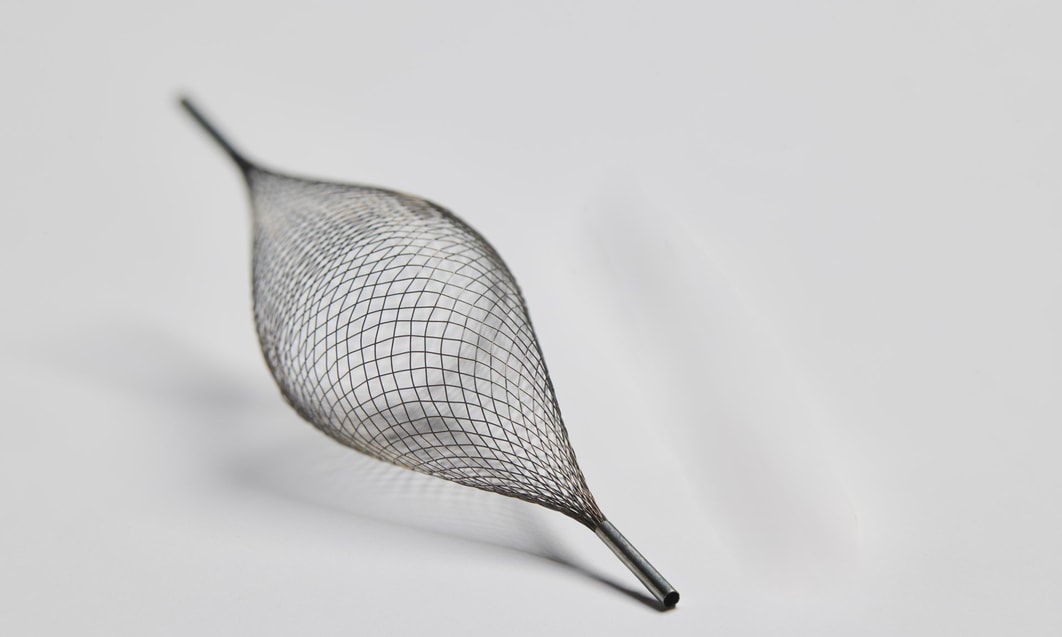

Manufacturing of this smart material requires precision and meticulous attention to detail. Alleima is a trusted partner at the forefront of nitinol processing, with extensive precision manufacturing capabilities with its core capabilities in braiding, shaping, grinding, joining and clean room assembly. Check out the film to learn more, or click on the video below.

Article
Interview with Dr. Bernd Vogel

Interview with Dr. Bernd Vogel

Read the interview with our bespoked expert in processing nitinol - Dr. Bernd Vogel in the issue 2/2024 of Medical Devide Development Journal. Dr. Vogel is the Global Technology and Innovations Manager at Alleima's business unit Medical.

Characteristics of nitinol

The distinctive feature of nitinol is characterized by this reversible solid phase change, known as martensitic transformation. The alloy material forms a crystalline structure capable of changing from one form to another. Temperature change and/or strain induce this transformation.

Above its transformation temperature, nitinol is superelastic and thus can resist some degree of deformation when a load is applied. Once the load is removed, it returns to its original shape. Below its transformation temperature, nitinol is subject to the thermal shape memory effect. After deformation, it will remain in this state until it is heated above the transformation temperature so that it returns to its original shape.

Above its transformation temperature, nitinol is superelastic and thus can resist some degree of deformation when a load is applied. Once the load is removed, it returns to its original shape. Below its transformation temperature, nitinol is subject to the thermal shape memory effect. After deformation, it will remain in this state until it is heated above the transformation temperature so that it returns to its original shape.

Memory metal with superelastic features

Nitinol returns to its original shape, which means that surgeons can deform an instrument to fit the patient’s anatomy. After steam sterilization, it returns to its original shape (thermal shape memory effect). Examples of this application are dilators and suction cannulas.

Nitinol is also superelastic, allowing the material to be bent up to 10 times more than stainless steel. Thin wires and tubes made of nitinol are routed through multiple tortuous paths in the body and still remain controllable. Superelasticity allows instruments and components to maintain a wide variety of shapes even under tension.

Nitinol spatula

Extreme flexible and biomechanical

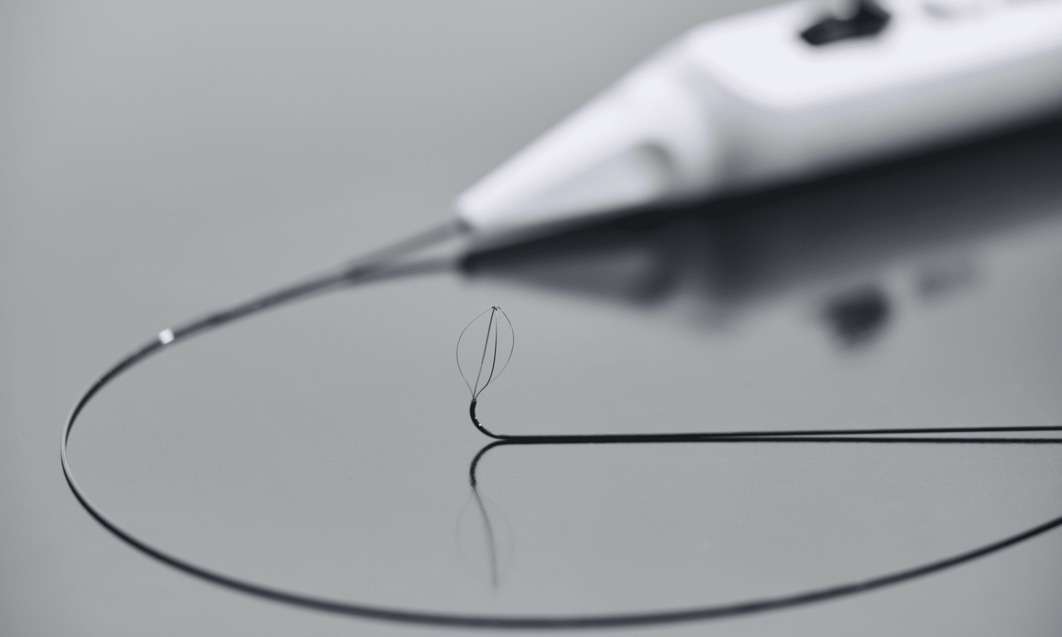

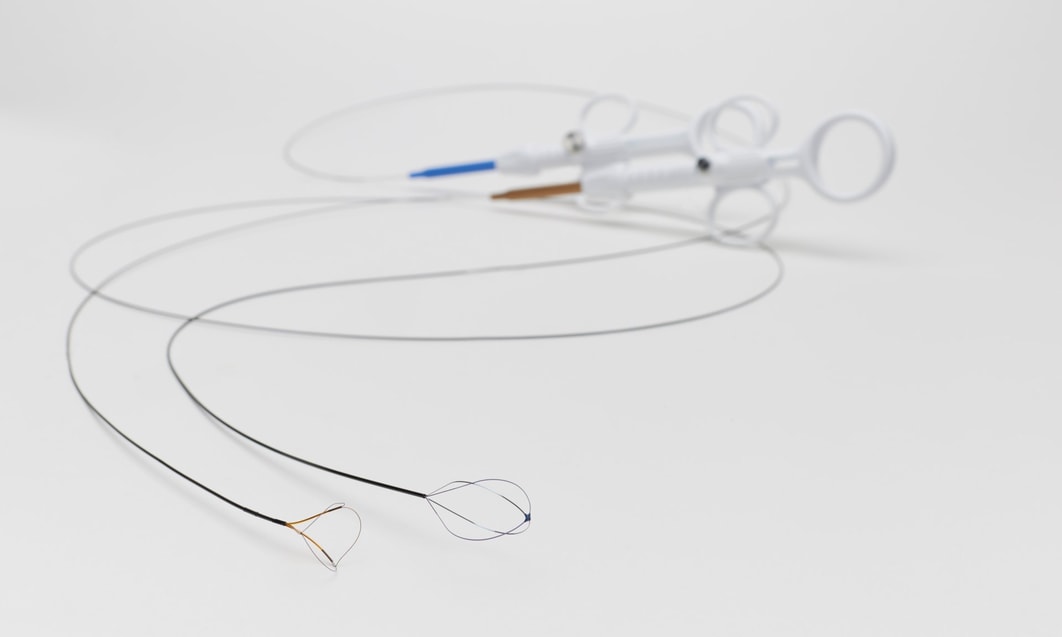

Nitinol is kink-resistant and flexible, making it suitable for use in endoluminal instruments such as retrieval baskets. The baskets are extremely flexible. They allow easy access combined with high kink resistance, high set-up force and 1-to-1 motion transmission.

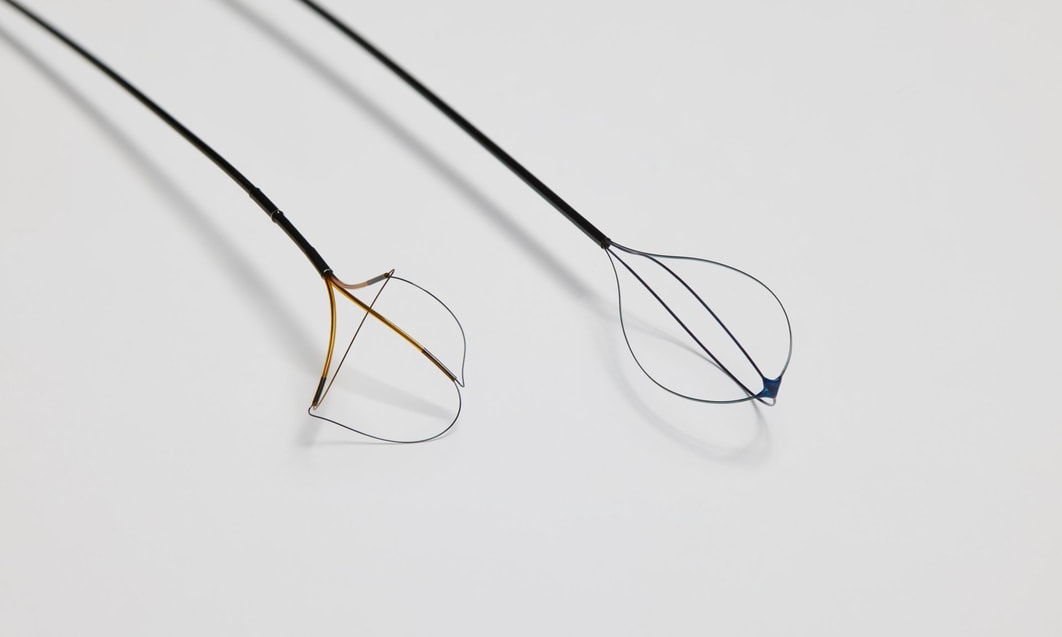

Nitinol wire basked

Nitinol’s biomechanical properties are also similar to biological material from a mechanical point of view. This makes it particularly suitable for use in implants. Materials such as stainless steel or titanium are very stiff and hardly elastic, so they do not yield even under pressure from surrounding tissue. Nitinol, on the other hand, with its biomechanical properties like human tissue, allows repeatable alternating stresses.

Processing nitinol

Nitinol requires special treatment. While the processing of other materials is usually unproblematic, with nitinol the main focus must be on maintaining the temperature-dependent properties. If the material is deformed in a cool state, it will return to its original shape after heating. Some processes can irreversibly damage both the material and the mold. For example, massive wear occurs when machining nitinol.

The use of nitinol in medical technology in the form of instruments and implants also usually requires special surface treatment. Our team has built up extensive expertise in the processing of nitinol over 20 years. Not only does the success of the process play a role, but also the cost-effectiveness in series production.

Applications in medical devices

Endoscopy and soft robotics

“The super elastic properties don’t need heat. You constrain, you crimp, you pull through a tube. Then you push it into the body. The system of tubes in the body is very complicated and very long, and we don’t want to cut open the body until we get to the point of interest. We want to go endoscopically. That’s why endoscopic instruments are getting small in diameter, longer, more flexible, and softer”, says Dr Bernd Vogel, Global Technology and Innovation Manager at Alleima and an expert in processing nitinol. “

Crimping is an effective joining technique for nitinol wire, meaning it can be connected to other nitinol components or different materials, such as stainless steel.

“The next generation will work with soft endoscopic robotics, which goes deeper in the body, and there you have to use flexible instruments. This is our field, we can crimp our devices and apply them to these robotics and then they open in the point of need. This is where you need super elastic properties – stainless steel can’t do that since it is too rigid, and the elastic properties are far too low to fulfill these needs,” Dr Vogel adds.

Read more about how robot-assisted surgery is transforming cardiology on our microsite on the Global Data platform.

Implants

"It’s the same with implants. You want to apply them through a very small catheter; a very small diameter application system. Then they should open up 20, to 30 times bigger when you apply it, therefore, you need extremely high superelastic properties, as well as a stable and stiff implant. These are exactly the properties nitinol offers", Dr Vogel ends.

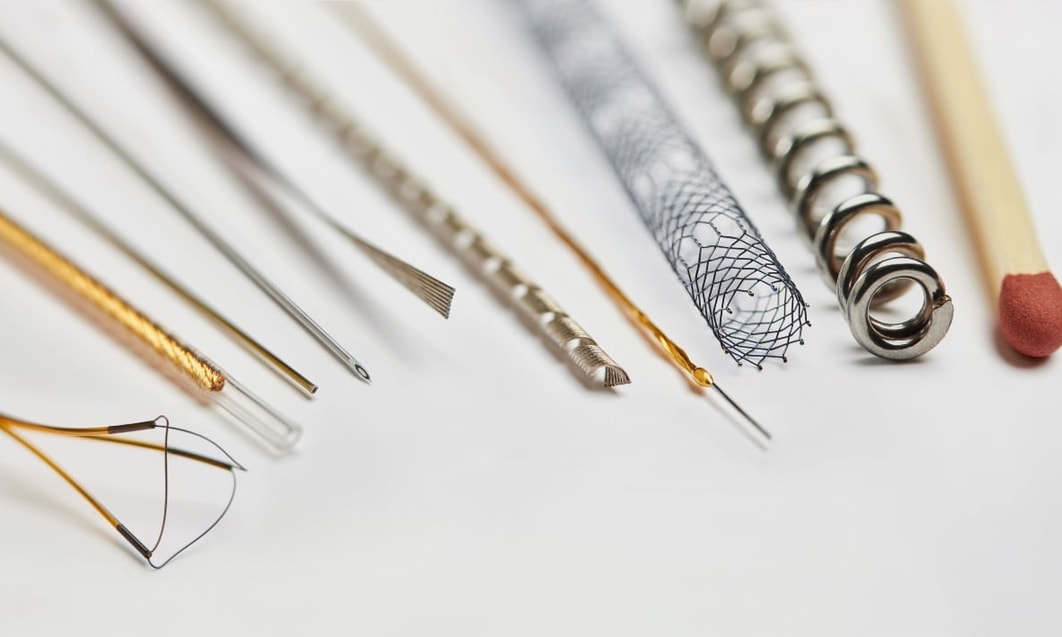

Nitinol’s versatility extends to various medical devices, including:

  • Stents: Self-expanding stents for treating atherosclerosis.
  • Catheters: Enhanced flexibility and strength for cardiovascular and urological uses.
  • Retrievers and graspers: For retrieving clots or foreign objects.
  • Guidewires: Used in minimally invasive surgeries due to their flexibility.
  • Vena cava filters: Prevent blood clots from reaching the lungs.
  • Endovascular Aneurysm Repair (EVAR): Flexible, self-expanding grafts for aneurysms.
  • Surgical instruments: Shape memory and flexibility for minimally invasive procedures.
  • Orthopedic implants: Super-elasticity and biocompatibility for joint implants.
  • Neurovascular device coils and embolization devices: Treat brain aneurysms by blocking abnormal blood flow.
  • Bone anchors and screws: Secure bone fractures, especially where compression is needed.
  • Structural heart occluders: As a minimally invasive treatment for congenital heart defects and stroke risk reduction, these devices require the flexibility and structural integrity offered by nitinol.
  • ​​​​​​​Inter-atrial shunts: Nitinol is vital in these investigational devices that create small pathways for blood to flow from the left to the right side of the heart, reducing heart failure symptoms and boosting patient outcomes.​​​​​​​

Nitinol’s role is expected to grow, particularly in robotic surgery and the integration of sensing technologies. These advancements could enhance the precision and safety of medical procedures.
