Reducing tees, butt weld fittings

Fittings & flanges

Contact us View in Webshop

ASTM A403 / A815 ASME B16.9

Product code example:

●: FBRT-304L-4-2-10S
▲: FBRT-W316L-10-6-10S

● = stock standard, made from seamless pipe
▲ = stock standard, made from welded pipe or plate

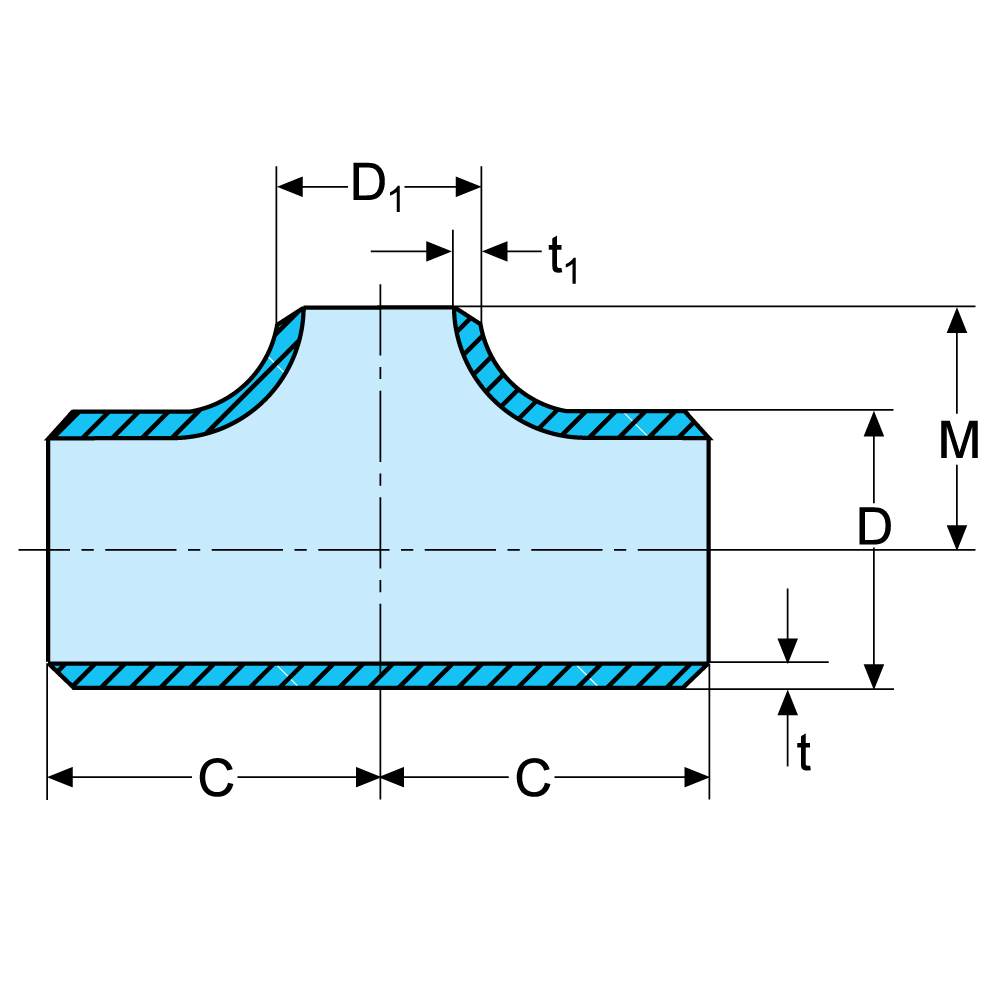

Nom pipe size, in. Sch* Dimensions in mm Weight ASTM ASTM
Run Outlet D D1 t t1 C M kg/pce 304L 316L
3/4
1/2
 10s
40s
80s		 26.7
26.7
26.7		 21.3
21.3
21.3		 2.11
2.87
3.91		 2.11
2.77
3.73		 29
29
29		 29
29
29
0.110
0.150
0.190
▲
●
-
●/▲
●
●
1
1/2
 10s
40s
80s		 33.4
33.4
33.4		 21.3
21.3
21.3		 2.77
3.38
4.55		 2.11
2.77
3.73		 38
38
38		 38
38
38		 0.190
0.220
0.281
●/▲
●
●
●/▲
●
●
1
3/4
 10s
40s
80s		 33.4
33.4
33.4		 26.7
26.7
26.7		 2.77
3.38
4.55		 2.11
2.87
3.91		 38
38
38		 38
38
38		 0.190
0.230
0.270
●/▲
●
-
●/▲
●
▲
1¼
1/2
 40s 42.2 21.3 3.56 2.77 47.6 47.6 0.367
●
●
1¼
3/4
 10s
40s		 42.2
42.2		 26.7
26.7		 2.77
3.56		 2.11
2.87		 47.6
47.6		 47.6
47.6		 0.440
0.530
▲
-
▲
▲
1¼
1
 10s
40s
80s		 42.2
42.2
42.2		 33.4
33.4
33.4		 2.77
3.56
4.85		 2.77
3.38
4.55		 47.6
47.6
47.6		 47.6
47.6
47.6		 0.450
0.530
0.600
▲
●
-
●/▲
●
▲
1½
1/2
 10s
40s		 48.3
48.3		 21.3
21.3		 2.77
3.68		 2.11
2.77		 57
57		 57
57		 0.390
0.520
▲
●
●/▲
●
1½
3/4
 10s
40s
80s		 48.3
48.3
48.3		 26.7
26.7
26.7		 2.77
3.68
5.08		 2.11
2.87
3.91		 57
57
57		 57
57
57		 0.390
0.520
0.690
●
-
-
●
●
▲
1½
1
 10s
40s
80s		 48.3
48.3
48.3		 33.4
33.4
33.4		 2.77
3.68
5.08		 2.77
3.38
4.55		 57
57
57		 57
57
57		 0.420
0.550
0.724
●/▲
●
●
●/▲
●
●
2
3/4
 10s
40s
80s		 60.3
60.3
60.3		 26.7
26.7
26.7		 2.77
3.91
5.54		 2.11
2.87
3.91		 64
64
64		 44
44
44		 0.510
0.710
0.990
●
●
-
●
●
▲
2
1
 10s
40s
80s		 60.3
60.3
60.3		 33.4
33.4
33.4		 2.77
3.91
5.54		 2.77
3.38
4.55		 64
64
64		 51
51
51		 0.540
0.740
1.020
●/▲
●
●
●
●
●
2
1¼
 10s
40s
80s		 60.3
60.3
60.3		 42.2
42.2
42.2		 2.77
3.91
5.54		 2.77
3.56
4.85		 64
64
64		 57
57
57		 0.571
0.804
1.07
●
●
-
▲
-
-
2
1½
 10s
40s		 60.3
60.3		 48.3
48.3		 2.77
3.91		 2.77
3.68		 64
64		 60
60		 0.590
0.830
●/▲
●
●/▲
●
2½
1¼
 10s 73.0 42.2 3.05 2.77 76 67 0.874
●
 -
2½
1½
 10s
40s		 73.0
73.0		 48.3
48.3		 3.05
5.16		 2.77
3.68		 76
76		 67
67		 0.900
1.490
●/▲
●
 ●/▲
●
2½ 2 10s
40s		 73.0
73.0		 60.3
60.3		 3.05
5.16		 2.77
3.91		 76
76		 70
70		 0.940
1.530		 ●/▲
-		 ●/▲
●
3 1 10s
40s		 88.9
88.9		 33.4
33.4		 3.05
5.49		 2.77
3.38		 86
86		 73
73		 1.150
2.050		 ●
●		 ●
●
3 1½ 10s
40s		 88.9
88.9		 48.3
48.3		 3.05
5.49		 2.77
3.68		 86
86		 73
73		 1.190
2.050		 ●/▲
●		 ●/▲
●
3 2 10s
40s		 88.9
88.9		 60.3
60.3		 3.05
5.49		 2.77
3.91		 86
86		 76
76		 1.230
2.160		 ●/▲
●		 ●/▲
●
3 2½ 10s
40s		 88.9
88.9		 73.0
73.0		 3.05
5.49		 3.05
5.16		 86
86		 83
83		 1.310
2.290		 ●/▲
-		 ●/▲
●
4 1½ 10s
40s		 114.3
114.3		 48.3
48.3		 3.05
6.02		 2.77
3.68		 105
105		 86
86		 1.750
4.000		 -
-		 ▲
●
4 2 10s
40s		 114.3
114.3		 60.3
60.3		 3.05
6.02		 2.77
3.91		 105
105		 89
89		 2.000
4.500		 ●/▲
●		 ●/▲
●
4 2½ 10s
40s		 114.3
114.3		 73.0
73.0		 3.05
6.02		 3.05
5.16		 105
105		 95
95		 2.100
4.700		 ●
-		 ●/▲
●
4 3 10s
40s		 114.3
114.3		 88.9
88.9		 3.05
6.02		 3.05
5.49		 105
105		 98
98		 2.150
5.000		 ●/▲
●		 ●/▲
●
5 3 10s
40s		 141.3
141.3		 88.9
88.9		 3.40
6.55		 3.05
5.49		 124
124		 111
111		 3.130
7.500		 -
-		 ●
●
5 4 10s
40s		 141.3
141.3		 114.3
114.3		 3.40
6.55		 3.05
6.02		 124
124		 117
117		 3.260
8.000		 -
-		 ●/▲
●
6 2½ 10s 168.3 73.0 3.40 3.05 143 124 5.000 ● -
6 3 10s
40s		 168.3
168.3		 88.9
88.9		 3.40
7.11		 3.05
5.49		 143
143		 124
124		 4.900
11.000		 ●/▲
●		 ●/▲
●
6 4 10s
40s		 168.3
168.3		 114.3
114.3		 3.40
7.11		 3.05
6.02		 143
143		 130
130		 5.100
11.500		 ●/▲
●		 ●/▲
●
6 5 10s
40s		 168.3
168.3		 141.3
141.3		 3.40
7.11		 3.40
6.55		 143
143		 137
137		 5.300
12.000		 ●
-		 ▲
●
8 4 10s
40s		 219.1
219.1		 114.3
114.3		 3.76
8.18		 3.05
6.02		 178
178		 156
156		 7.700
20.500		 ●/▲
●/▲		 ●/▲
●/▲
8 5 10s
40s		 219.1
219.1		 141.3
141.3		 3.76
8.18		 3.40
6.55		 178
178		 162
162		 8.150
20.700		 -
●		 ▲
●
8 6 10s
40s		 219.1
219.1		 168.3
168.3		 3.76
8.18		 3.40
7.11		 178
178		 168
168		 8.300
21.000		 ●/▲
●/▲		 ●/▲
●/▲
10 4 10s
40s		 273.1
273.1		 114.3
114.3		 4.19
9.27 		 3.05
6.02		 216
216 		 184
184		 13.000
35.000 		 ▲
-		 ▲
▲
10  6  10s
40s		 273.1
273.1		 168.3
168.3		 4.19
9.27		 3.40
7.11		 216
216		 194
194 		 16.500
36.000 		 ▲
▲		 ●/▲
●/▲
10  8  10s
40s		 273.1
273.1		 219.1
219.1		 4.19
9.27 		 3.76
8.18		 216
216		 203
203 		 16.700
36.300 		 ●/▲
●/▲		 ●/▲
●/▲
12 6 10s
40s		 323.9
323.9		 168.5
168.5		 4.57
9.53		 3.40
7.11		 254
254 		 219
219 		 23.000
52.000 		 ▲
●/▲		 ▲
▲
12 8 10s
40s		 323.9
323.9		 219.1
219.1 		 4.57
9.53		 3.76
8.18		 254
254		 229
229 		 24.000
53.000 		 ●/▲
▲		 ▲
▲
12 10 10s
40s		 323.9
323.9		 273.1
273.1 		 4.57
9.53		 3.76
9.27 		 254
254		 241
241 		 25.000
54.000 		 ●/▲
▲		 ▲
▲

* Schedule
