Stainless butt welding end caps acc. to ASME

End caps, butt weld fittings

Fittings & flanges

ASTM A403 / A815 ASME B16.9

Product code example:

●: FBEC-316L-1-10S
●: FBEC-W31803-3-10S

● = stock standard, made from plate

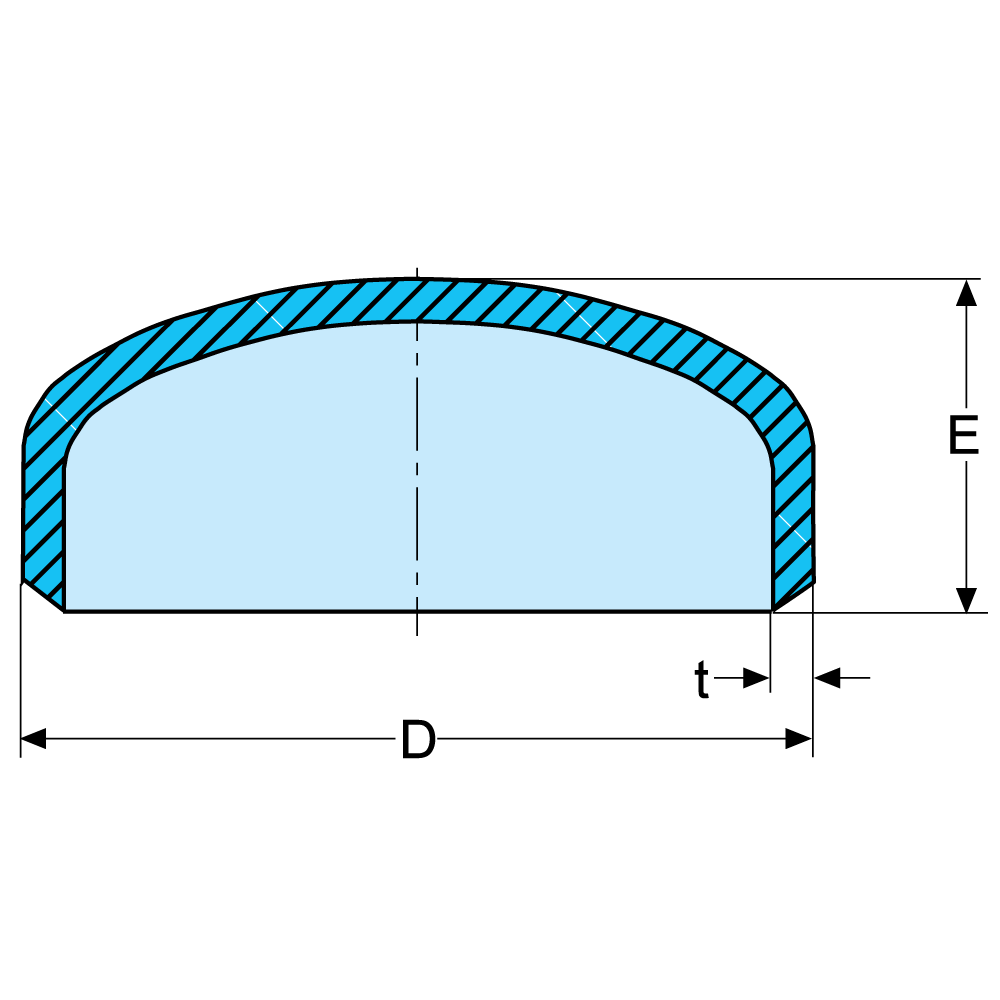

	Sch.*	Dimensions in mm			Weight	ASTM	ASTM	UNS
in.		D	t	E	kg/pce	304/304L	316/316L	S31803
1/2	10s 40s 80s	21.3 21.3 21.3	2.11 2.77 3.73	25.4 25.4 25.4	0.040 0.050 0.050	● ● -	● ● ●	● - -
3/4	10s 40s 80s	26.7 26.7 26.7	2.11 2.87 3.91	25.4 25.4 25.4	0.050 0.060 0.060	● ● -	● ● ●	● ● -
1	10s 40s 80s	33.4 33.4 33.4	2.77 3.38 4.55	38.1 38.1 38.1	0.090 0.130 0.130	● ● -	● ● ●	● ● -
1¼	10s 40s 80s	42.2 42.2 42.2	2.77 3.56 4.85	38.1 38.1 38.1	0.130 0.170 0.180	● ● -	● ● ●	- - -
1½	10s 40s 80s	48.3 48.3 48.3	2.77 3.68 5.08	38.1 38.1 38.1	0.140 0.230 0.240	● ● -	● ● ●	● ● -
2	10s 40s 80s	60.3 60.3 60.3	2.77 3.91 5.54	38.1 38.1 38.1	0.170 0.270 0.340	● ● -	● ● ●	● ● -
2½	10s 40s 80s	73.0 73.0 73.0	3.05 5.16 7.01	38.1 38.1 38.1	0.250 0.450 0.510	● ● -	● ● ●	● ● -
3	10s 40s 80s	88.9 88.9 88.9	3.05 5.49 7.62	50.8 50.8 50.8	0.400 0.710 0.850	● ● ●	● ● ●	● ● ●
4	10s 40s 80s	114.3 114.3 114.3	3.05 6.02 8.56	63.5 63.5 63.5	0.650 1.220 1.610	● ● ●	● ● ●	● ● -
5	10s 40s 80s	141.3 141.3 141.3	3.40 6.55 9.53	76.2 76.2 76.2	1.020 1.910 2.550	● ● -	● ● ●	● - -
6	10s 40s 80s	168.3 168.3 168.3	3.40 7.11 10.97	88.9 88.9 88.9	1.360 3.230 4.540	● ● -	● ● ●	● ● -
8	10s 40s	219.1 219.1	3.76 8.18	101.6 101.6	2.490 5.670	● ●	● ●	● ●
10	10s 40s	273.1 273.1	4.19 9.27	127.0 127.0	4.900 9.210	● ●	● ●	● -
12	10s 40s	323.9 323.9	4.57 9.53	152.4 152.4	6.530 13.060	● ●	● ●	● -
14	10s STD	355.6 355.6	4.78 9.53	165.1 165.1	8.160 15.900	● -	● ●	- -
16	10s STD	406.4 406.4	4.78 9.53	177.8 177.8	14.510 20.000	● -	● ●	- -
18	10s	457.2	4.78	203.2	17.960	●	●	-
20	10s	508.0	5.54	228.6	27.220	●	●	-
24	10s	609.6	6.35	266.7	34.470	●	●	-

* Schedule
